ART7 ASTERABOX
AsteraBox是灯具与控制器之间的连接器，它可以透过CRMX技术以作为无线DMX收发器， 也可以作为AsteraApp和灯具之间的桥梁，如同所有的Astera的产品，AsteraBox也自带 电池，使用上简单又方便。
供电
Battery: LG ChemBattery Runtime: 72 hours (Astera App mode) 16 hours (CRMX Mode)
Range: 300m
无线频率
UHF2.4GHz
结构
Housing: AluminiumWeight: 0.230kg
Dimensions: L144 x W78 x H30mm
Port: Micro-USB for charging 3.5″ jack for DMX input

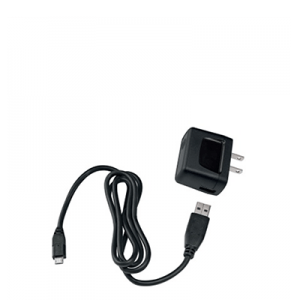

电源适配
Micro-USB电线

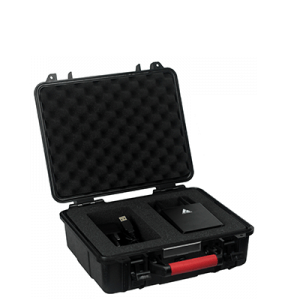

专用收纳箱
ART7-CSE

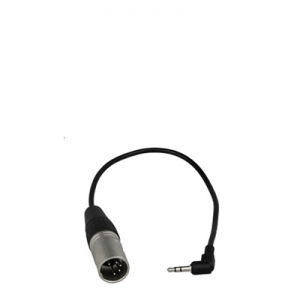

DMX转接线
ART7-DMXA
Astera 系统
智能（双向）控制系统，红外遥控、无线DMX和应用程序协同工作，可以快速方便地设置、监控和调整，从而实现大型活动无线照明控制。

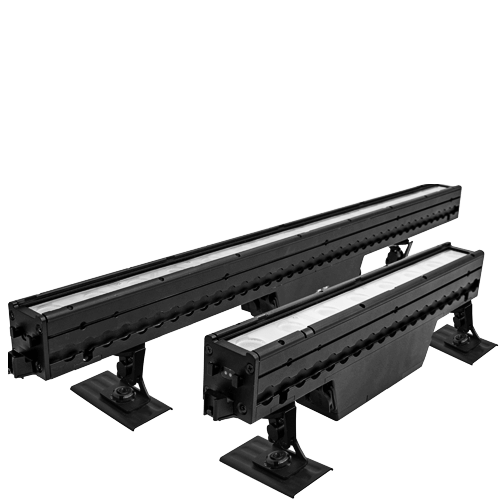

Control AX2 PixelBar
Create complex programs out of colors, effects and settings. The lights will remember and repeat these effects without requiring a constant wireless link.
Quickly create groups of lights, assign positions and select which Tube should receive commands.
Monitor
Keep a complete overview over the status and all settings of your lights while you operate them.
View battery status, radio signal, DMX address and which lights you have targeted.
Diagnose individual lights and even get informed if a light is being moved or switched off.
This works while you control lights by the app but also if lights are controlled via DMX.
Set Up Faster
Set DMX addresses and profiles for one light or several lights.
50 units can be prepared in less than 5 minutes.
After your job, do a quick master reset of all settings and the lights are ready for the next event.
LumenRadio
The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with LumenRadio CRMX technology, the most stable wireless DMX protocol available.
Compatibility
All Astera Battery Powered PAR carry the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.
Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the lights.
When programming lights with the AsteraApp the IR remote can be used for confirming settings on individual lights.
