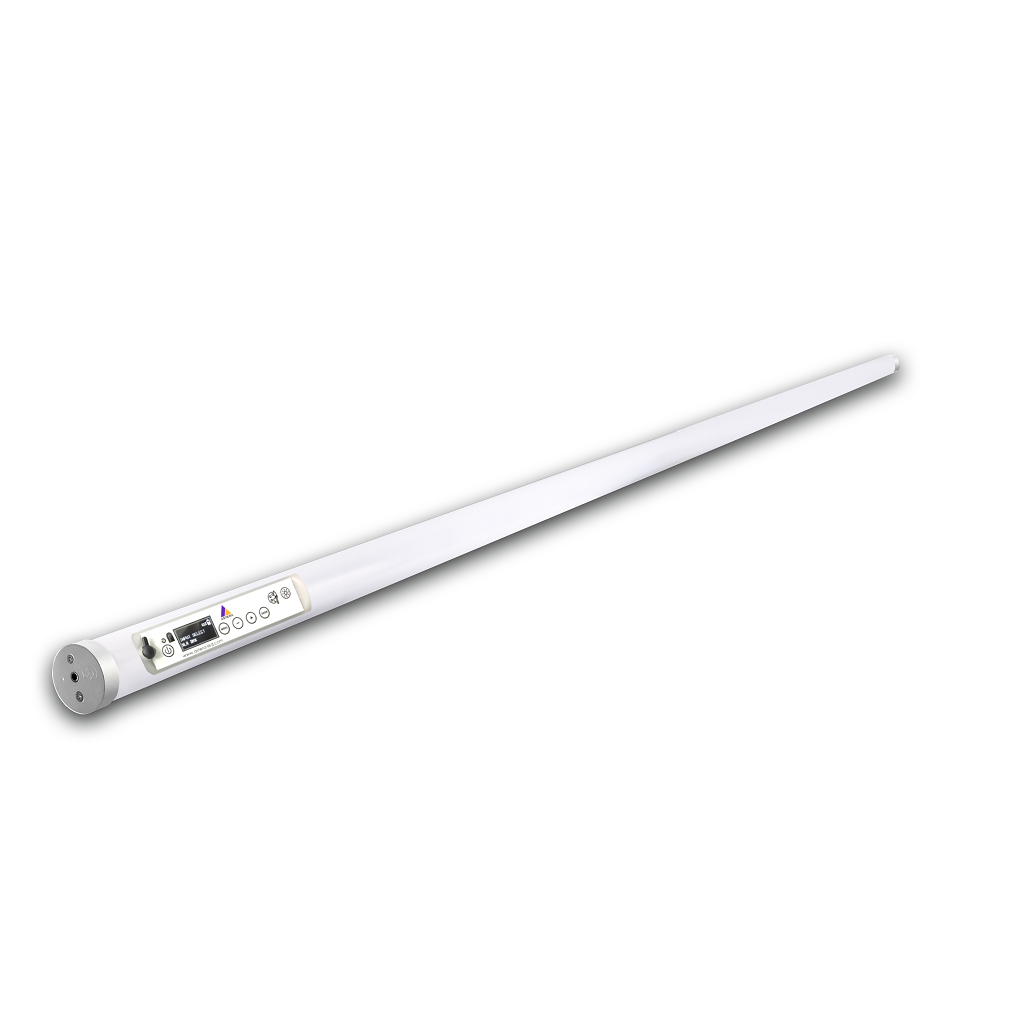

在Titan取得广泛赞誉之后,Astera精心打造长度为2031毫米(79.96英寸)的Hyperion灯管。与Titan不同的是增加一倍的LED、电池容量、亮度、像素;不变的是拥有同样高品质的光效、简单易上手的App、先进的CRMX模块控制以及有线DMX选项。
Banner photo from: Jose Ovi Jimenez & Christopher Stewart
光学
颜色:RGB-ALED额定功率:144W
最大功率消耗:92W
光照强度(距离1m):1570Lx
TLCI:≥96
CRI:≥96
出光角度:180°
像素:32
供电
电池:LG化学锂离子电池电池使用寿命:充放电循环300次后剩余70%电力
电池运行时间:最长续航时间20小时
充电时间:3小时
输入电压(充电时):90-264V 47-63Hz
输入电压(使用时):24V 4A
控制
背面显示:HSI控制无线模块:865-870 MHz|902-928 MHZ|2.4GHz
范围:300m |330 Yards
DMX:有线DMX+无线(CRMX&W-DMX)
结构
外观:聚碳酸酯+金属端盖IP防护等级:IP65
相对湿度:0-100%
使用环境温度:0-40℃|32-104°F
产品重量:2.90kg|6.39Lbs
尺寸大小:Φ42×2031mm|Φ1.6" x H79.9"
32矩阵像素
32个独立可控的矩阵像素
可调白光
白光色温:1,750K~20,000K
优异的显色效果
TLCI ≥ 96, CRI Ra ≥ 96, CRI Re≥ 90;多种颜色可调,色温3,200K 至 6,500K
升压模式
连续使用2小时或连接AC电源时,将进入升电压模式以维持灯具最高亮度

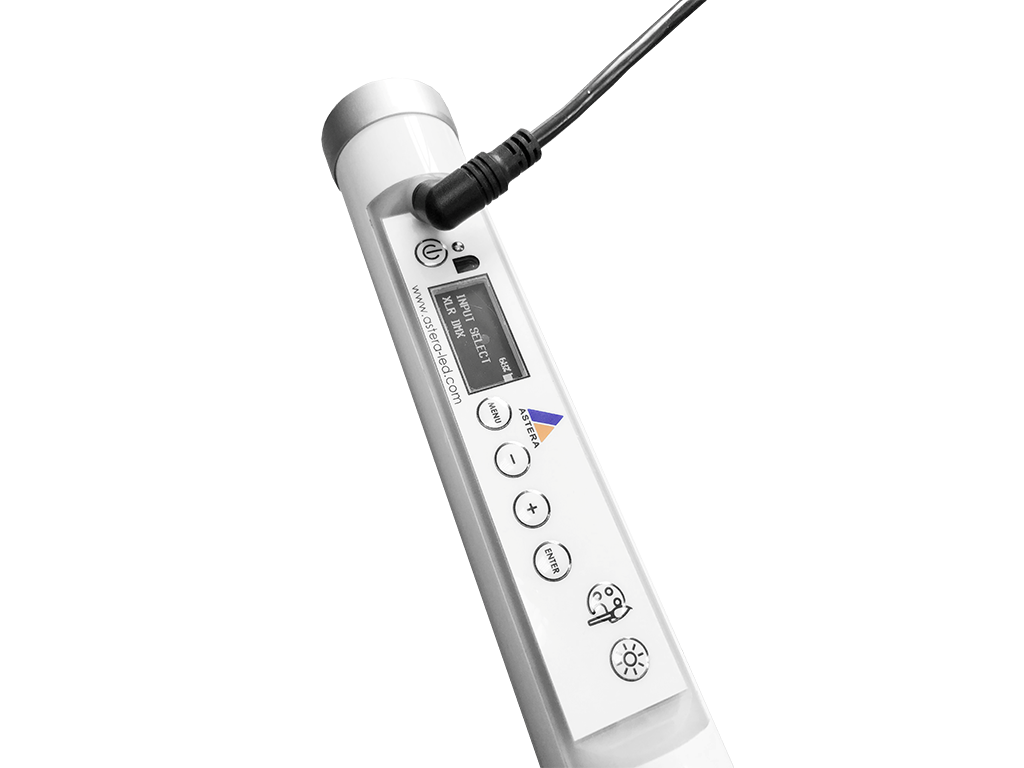

背部显示
快速查看DMX设置、颜色、色调、饱和度及亮度控制等
电源及信号连接
可通过电源箱对DMX,Art-Net,sACN信号及电源进行分配
安装配件
定制支架、支架等,便于任何产品的固定
Astera 系统
智能(双向)控制系统,红外遥控、无线DMX和应用程序协同工作,可以快速方便地设置、监控和调整,从而实现大型活动无线照明控制。
Control Hyperion Tube
Create complex programs out of colors, effects, and settings. Helios Tube will remember and repeat these effects without requiring a constant wireless link.
Quickly create groups of lights, assign positions and select which Tube should receive commands.
Monitor
Keep a complete overview of the status and all settings of your Hyperion Tubes while you operate them.
View battery status, radio signal, DMX address and which lights you have targeted.
Diagnose individual Hyperion Tubes or Astera Event Spotlights and even get informed if a light is being moved or switched off.
This works while you control lights by the app but also if Helios, Hyperion or Titan Tubes are controlled via DMX.
Set Up Faster
Set up your PixelTube conveniently out of the distance.
Set DMX address and DMX footprint for one or several Helios, Hyperion, Titan Tube or Spotlights; 50 units can be prepared in less than 5 minutes out of the distance.
After your job, do a quick master reset of all settings and the lights are ready for the next event.
LumenRadio
The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable wireless DMX protocol available.
Compatibility
We included the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.
Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the lights.
When programming lights with the AsteraApp the IR remote can be used for confirming settings on individual lights.
