电影制作和演艺活动专用灯泡

可转换颜色的NYX LED灯泡系列非常适合用于影视行业、舞台及活动项目中。与一般灯泡不同的是,NYX LED灯泡内部配备CRMX接收器,并可以透过RF和蓝牙模块与Astera 软件进行连接。电源连接方面,NYX LED灯泡可以透过E26/E27螺旋口供电,也可以透过标准的电源适配器进行供电,同时采用与Titan LED系列灯具一样的引擎部件,因此拥有极高的CRI及TLCI显色效果。




技术参数

光学
Colors: Red, Green, Blue, Mint, Amber
Luminous Flux: 750lm*
Total LED power: 14W
Max power draw: 10W
TLCI (3200-6500K)*: ≥96
CRI (3200-6500K)*: ≥96
Strobe: 0-25Hz
Beam Angle: 120˚
Field Angle: 180˚
Pixels: 1
(* Typical value)

供电
Each bulb allows AC and DC power
AC Power: FP5-E26: 100-120 VAC, FP5-E27: 100-240VAC
DC Power: 5-18VDC, 2.1A via DC socket
控制
Setup Via AsteraApp or Battery Base
Wireless Modules: UHF, CRMX, Bluetooth
DMX: Wireless DMX (CRMX)
Range
UHF: 100m | 110 Yards
CRMX: 100m | 110 Yards
Bluetooth: 3m | 3 Yards

结构
Housing: Aluminium + polycarbonate
Ingress Protection: IP44
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 0.24kg | 0.53Lbs
Dimensions: Ø70 x 130mm | Ø2.76” x H5.12”
配件



控制设备

光度测量(CRI, TLCI)

固件说明


Untitled-1-1-150x150
可调白光
白光光源可调整,从1,750K 至 20,000K
wheel-1-150x150
精确调色
精确显示CCT、RGB和HSI值或输出滤光片色值
CRI-150x150
优异的显色效果
TLCI ≥ 96, CRI Ra ≥ 96, CRI Re≥ 90;多种颜色可调,色温3,200K 至 6,500K
10-150x150
AC+DC供电模式
通过灯插座或外部电池供电(5~18VDC)

CRMX_Chip-450x450-1-150x150
无线DMX
内置LumenRadio CRMX讯号接收器
NYX-transmitter-1-150x150
直接APP控制
不需通过AsteraBox(即将上市)

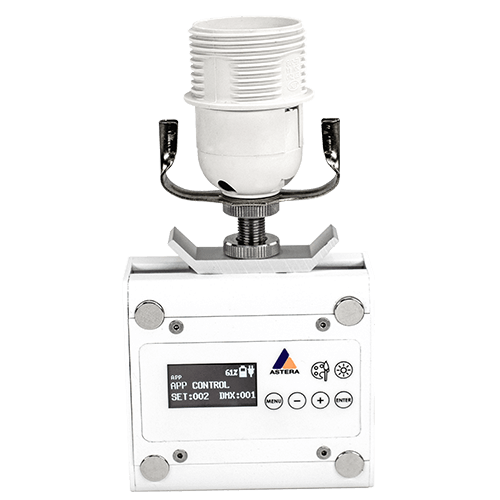

NYX灯泡专用充电站

专用充电站透过一体式电线,连接于NYX灯泡为其提供电力,连接时充电站可以充当外接型控制面板,直接进行DMX的地址码与编程设定,并同步储存于NYX灯泡中,也可以透过充电站设置灯泡的颜色、效果及亮度等。充电站除背部带有强力磁体,同时也配备轨道模块可以直接与支架轨道连接头或连接件配件直接配合吊挂使用。
资料下载




Astera 系统

智能(双向)控制系统,红外遥控、无线DMX和应用程序协同工作,可以快速方便地设置、监控和调整,从而实现大型活动无线照明控制。
App控制(UHF)

Create complex programs out of colors, effects, and settings. NYX Bulb will remember and repeat these effects without requiring a constant wireless link.
Quickly create groups of lights, assign positions and select which Tube should receive commands.

Monitor

Keep a complete overview of the status and all settings of your NYX Bulb while you operate them.
View battery status, radio signal, DMX address and which lights you have targeted.
Diagnose individual NYX Bulb and even get informed if a light is being moved or switched off.
This works while you control lights by the app but also if NYX Bulb are controlled via DMX.

Set Up Faster

Set up your Film Light conveniently out of the distance.
Set DMX address and DMX footprint for one or several NYX Bulbs; 50 units can be prepared in less than 5 minutes out of the distance.
After your job, do a quick master reset of all settings and the lights are ready for the next event.

无线DMX (2.4GHz)

LumenRadio

The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable wireless DMX protocol available.

Compatibility

The AX3 LightDrop and all Astera battery pars carry the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.

红外遥控

Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the lights.
When programming lights with the AsteraApp the IR remote can be used for confirming settings on individual lights.



独特性能
