电影电视和广播用照明LED管

Helios Tube可以在RGB–琥珀色–白光之间只有切换的LED灯管,具有Titan灯管的所有功能,更小的身材允许它安装在Titan不适合的地方,也增加了便携性。该灯管有8个像素,亮度可达Titan灯管的一半,长度亦为其一半。其颜色和亮度与Titan管完全相同。



 Banner photo from: Jose Ovi Jimenez & Christopher Stewart

[layerslider id="7"]

技术参数

光学
颜色:RGBW
LED额定功率:36W
最大功率消耗:24W
光照强度(距离1m):393Lx
CRI:≥96
出光角度:180°
像素:8


供电
电池:LG化学锂离子电池
电池使用寿命:充放电循环300次后剩余70%电力
电池运行时间:最长续航时间20小时
充电时间:3小时
输入电压(充电时):90-264V 47-63Hz
输入电压(使用时):24V 1.25A
控制
背面显示:HSI控制
无线模块:865-870 MHz|902-928 MHZ|2.4GHz
范围:300m |330 Yards
DMX:有线DMX+无线(CRMX&W-DMX)


结构
外观:聚碳酸酯+金属端盖
IP防护等级:IP65
相对湿度:0-100%
使用环境温度:0-40℃|32-104°F
产品重量:0.765kg|1.68Lbs
尺寸大小:42×550mm|1.6" x H22.7"
控制设备

Astera ARC1

AsteraBox

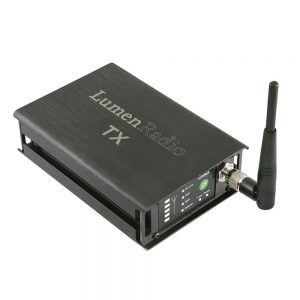

CRMX Nova TX

光度测量(显色指数,TLCI)

固件说明

Astera 系统

智能(双向)控制系统,红外遥控、无线DMX和应用程序协同工作,可以快速方便地设置、监控和调整,从而实现大型活动无线照明控制。
App控制(UHF)

Control Hyperion Tube

Create complex programs out of colors, effects, and settings. Helios Tube will remember and repeat these effects without requiring a constant wireless link.
Quickly create groups of lights, assign positions and select which Tube should receive commands. F

Monitor

Keep a complete overview of the status and all settings of your Helios Tubes while you operate them.
View battery status, radio signal, DMX address and which lights you have targeted.
Diagnose individual Helios Tubes or Astera Event Spotlights and even get informed if a light is being moved or switched off.
This works while you control lights by the app but also if Helios, Hyperion or Titan Tubes are controlled via DMX.

Set Up Faster

Set up your PixelTube conveniently out of the distance.
Set DMX address and DMX footprint for one or several Helios, Hyperion, Titan Tube or Spotlights; 50 units can be prepared in less than 5 minutes out of the distance.
After your job, do a quick master reset of all settings and the lights are ready for the next event.

无线DMX (2.4GHz)

LumenRadio

The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable wireless DMX protocol available.

Compatibility

We included the most reliable wireless DMX module on the market compatible with CRMX and other wireless DMX standards but not W-DMX G5 and City Theatrical.

红外遥控

Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the lights.
When programming lights with the AsteraApp the IR remote can be used for confirming settings on individual lights.
